Project Overview: 33kV Substation Cable Installation – Scotland

JHCS successfully delivered a high-voltage cable installation project at a major substation in Scotland, supporting critical infrastructure upgrades for a valued client.

The scope involved the installation, jointing, and termination of multiple 33kV circuits, ensuring safe and reliable integration with upgraded transmission assets.

33kV Substation Cable Installation – Scotland

Technical Delivery

This project required precise coordination and specialist high-voltage expertise across all stages:

  • Cable Installation

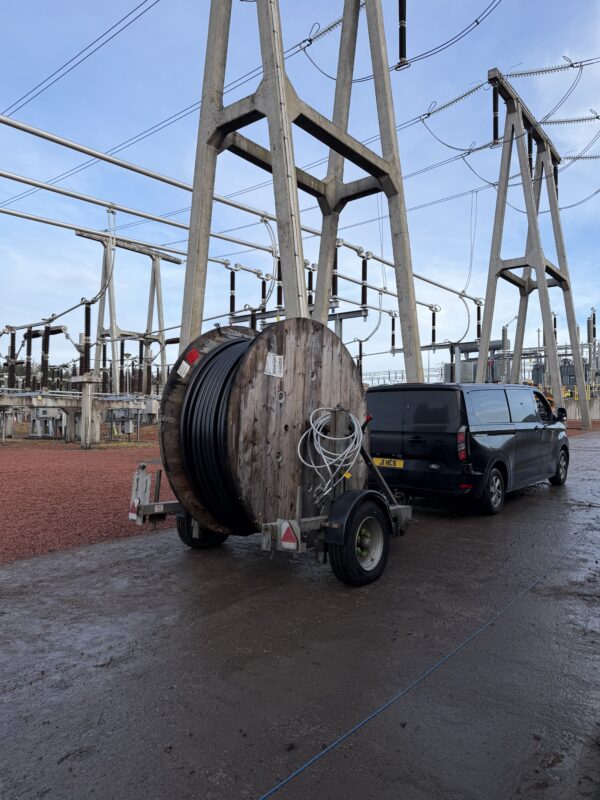

    The 6 x 630mm² single-core XLPE cables were installed within a controlled substation
    environment, ensuring correct handling, bending radius, and segregation throughout.
  • Jointing Works

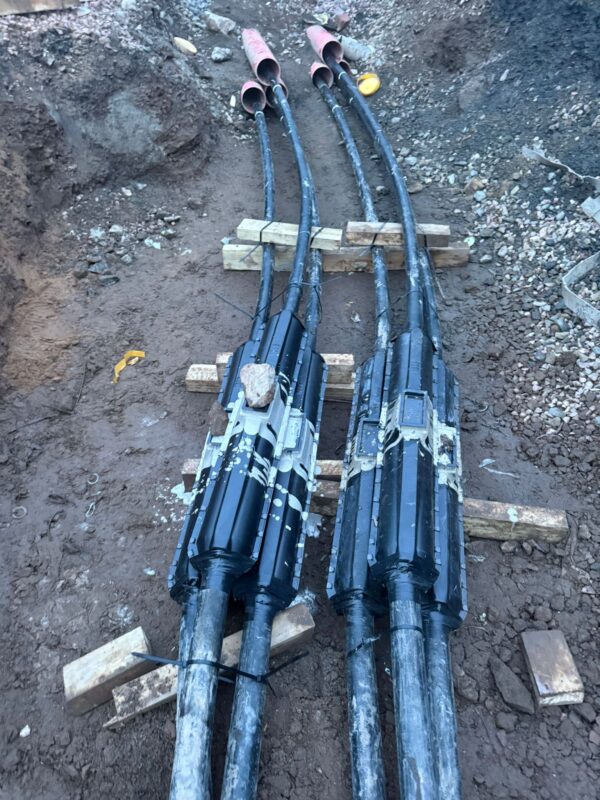

    JHCS completed six straight joints within a joint pit,
    maintaining strict quality control and testing procedures to ensure long-term network reliability.

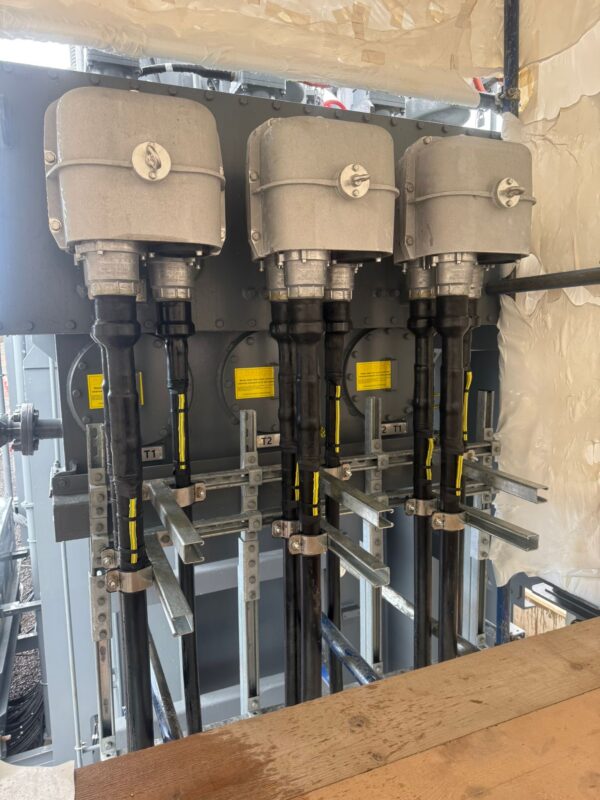

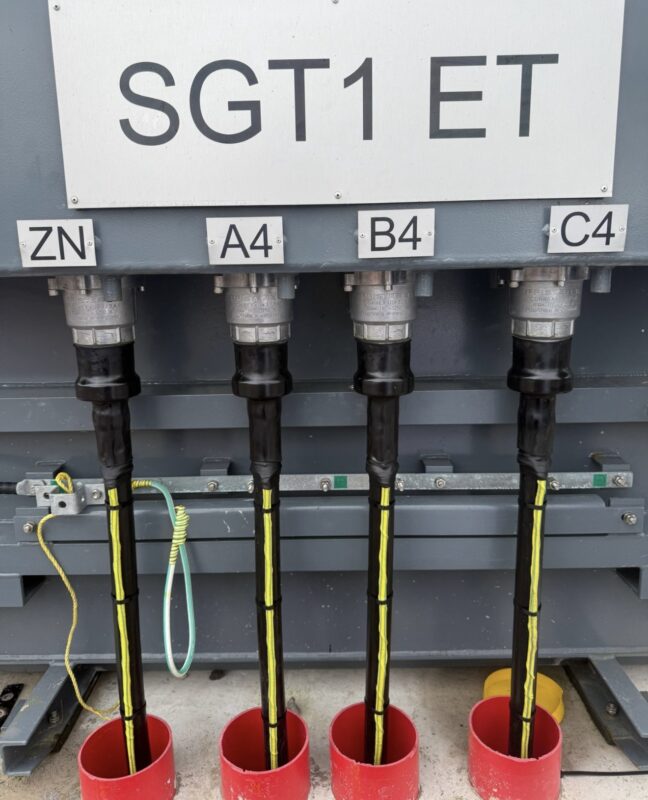

  • Transformer Terminations
    All primary circuits were terminated onto a 275kV transformer using Pfisterer systems,
    requiring accuracy, cleanliness, and adherence to manufacturer specifications.
  • Auxiliary Circuits
    Additional 240mm² 33kV auxiliary cables were installed and terminated,
    supporting the integration between auxiliary and main transformer systems.
33kV Substation Cable Installation – Scotland

Challenges & Solutions

Working within a live substation environment

Careful planning, method statements, and safe systems of work ensured zero disruption to surrounding infrastructure.

  • High-spec termination requirements (Pfisterer systems)
    Delivered by experienced jointers with proven HV competency.
  • Jointing within pit space
    Efficient sequencing and team coordination maintained programme and quality.
33kV Substation Cable Installation – Scotland

Outcome

All works completed safely, on programme, and to specification

  • High-quality installation ensuring long-term performance and reliability
  • Strengthened relationship with a key client in the energy sector

JHCS Capability

This project highlights JHCS’s capability to deliver:

  • High-voltage cable installation (up to 33kV and beyond)
  • Specialist jointing and termination works
  • Transformer connections and substation integration
  • Complex infrastructure projects across the UK
